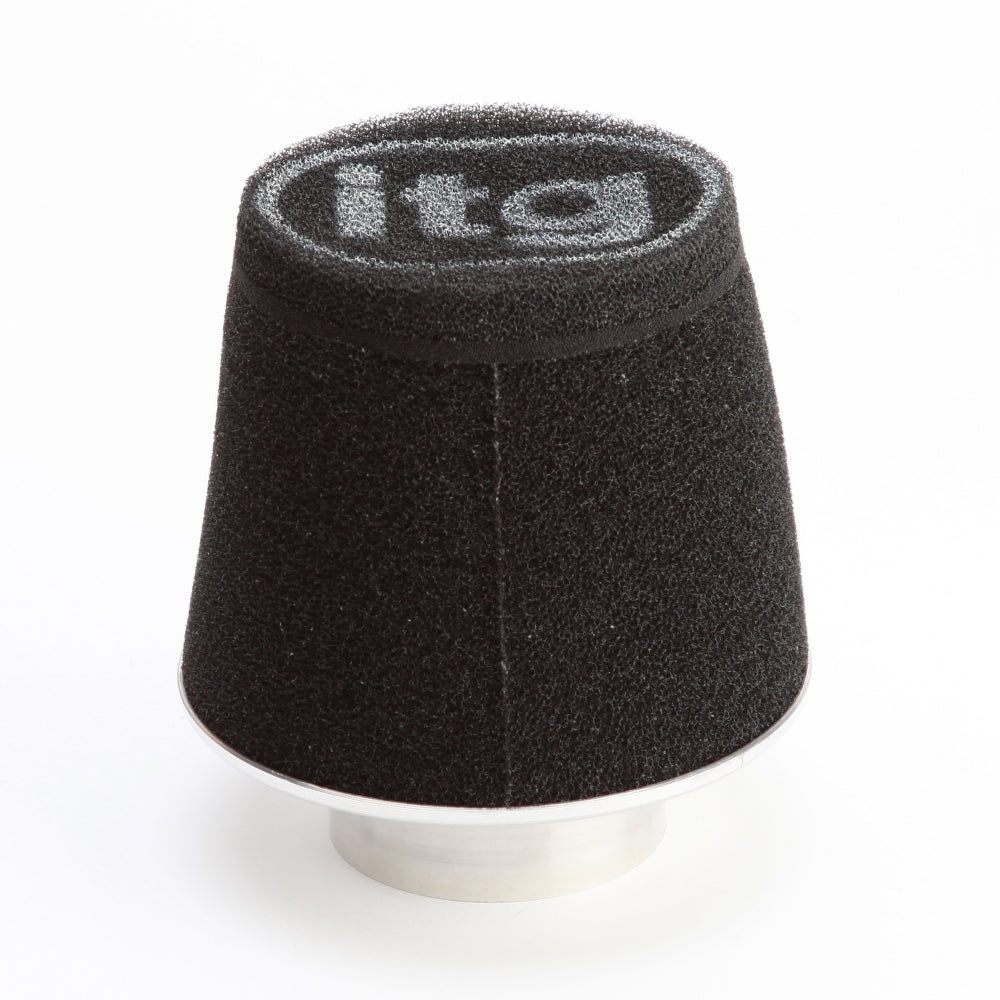

JC60FC (Full Cone)
Part Number: JC60FC
These filters use a reinforced plastic cage which gives the filters their distinctive shape and mean that they are capable of flowing larger volumes of air than the other versions of this filter. These JC60 filters are built onto our smaller 149mm diameter aluminium spinning. We would recommend this style of filter for forced induction applications.
Measurements
Please see below list of availble sizes for this filter range.
All dimensions are in (mm)
Part No. | A (ID) / B (OD) | C | D | E | F | G | (BHP) |
---|---|---|---|---|---|---|---|
JC60/58FC | 58 / 61 | 149 | 30 | 121 | 151 | 114 | 200 |
JC60/60FC | 60 / 63 | 149 | 52 | 121 | 173 | 114 | 220 |
JC60/63FC | 63 / 66 | 149 | 52 | 121 | 173 | 114 | 240 |
JC60/67FC | 67 / 70 | 149 | 54 | 121 | 175 | 114 | 270 |
JC60/70FC | 70 / 73 | 149 | 54 | 121 | 175 | 114 | 290 |
JC60/73FC | 73 / 76 | 149 | 50 | 121 | 171 | 114 | 300 |
JC60/78FC | 78 / 81 | 149 | 44 | 121 | 165 | 114 | 310 |
JC60/84FC | 84 / 87 | 149 | 46 | 121 | 167 | 114 | 330 |
