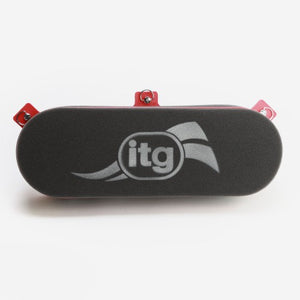

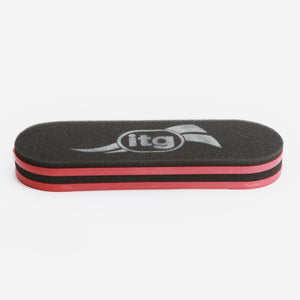

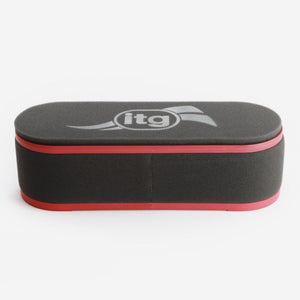

JC50 Big Twin Carburettor Filter
Part Number: JC50
These robust filters are the standard fit for most competition cars around the world. The two red fibre-reinforced nylon injected mouldings which form the structure have our unique Tri-Foam filter system bonded to them to give the ultimate in performance.
Measurements
A - (Internal Height mm) Distance from face of baseplate and the inside face of the filter
B - (Width mm) External width of the filter not including the lug
C - (Length mm) External length of the filter.
D - (Overall Height mm) Overall external height of the filter
| Part No. | A (Internal height) | B (Width) | C (Length) | D (Overall height) |
|---|---|---|---|---|
| JC50/25 | 25 | 148 | 436 | 50 |
| JC50/40 | 40 | 148 | 436 | 65 |
| JC50/65 | 65 | 148 | 436 | 90 |
| JC50/100 | 100 | 148 | 436 | 125 |
| JC50/125 | 125 | 148 | 436 | 150 |
