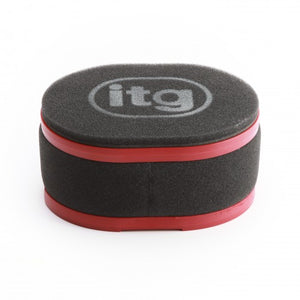

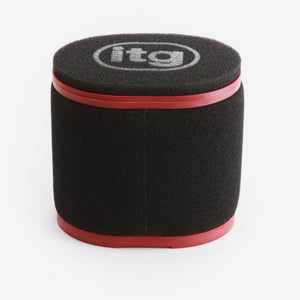

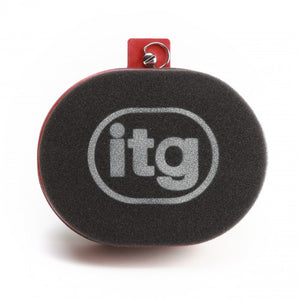

JC20 Single Carburettor Filter
Part Number: JC20
The JC20 range was originally designed in the 1980s when many cars were still using carburettors not fuel injection. Although fuel injection has been standard fitment for over 30 years there are still many applications for the JC20
Measurements
A - (Internal Height mm) Distance from face of baseplate and the inside face of the filter
B - (Width mm) External width of the filter not including the lug
C - (Length mm) External length of the filter.
D - (Overall Height mm) Overall external height of the filter
| Part No. | A (Internal height) | B (Width) | C (Length - bottom) | D (Overall height) |
|---|---|---|---|---|
| JC20/25 | 25 | 148 | 186 | 50 |
| JC20/40 | 40 | 148 | 186 | 65 |
| JC20/65 | 65 | 148 | 186 | 90 |
| JC20/100 | 100 | 148 | 186 | 125 |
| JC20/125 | 125 | 148 | 186 | 150 |
