ARAB65 Airbox
Part Number: ARAB65

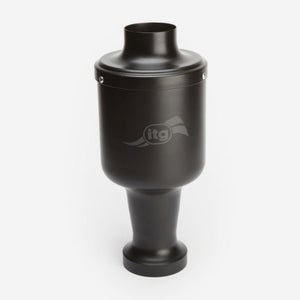

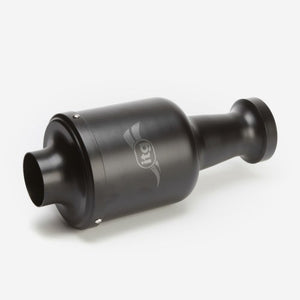

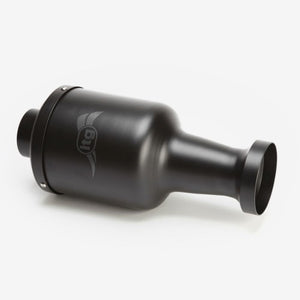

If your budget can't stretch to the RAB65 then this aluminium version of the same air box could be the answer. Originally designed to fit the Mk 1 Focus and the Mk 2 K Series engined Elise, this air box has been used by us on many other kits ranging from Renaults, MGs, Peugeots, Vauxhalls, etc.
Measurements
A - (Length) Measurement taken from airbox inlet (C), to filter spinning outlet (D). Rebated ARAB Spinning reduces length by approx. 20mm
B - (Width) Measurement taken at widest point of filter lid spinning.
Do not measure from screw to screw.
C - Inlet (Dirty air in) measurement taken as internal diameter.
See table for duct sizing guide.
D - Outlet (Clean air out) measurement taken as external diameter, and relates to ARAB spinning used.
All dimensions are in (mm)
| Part No. | A (Length) | B (Width) | C (Inlet) | D (Outlet) |
|---|---|---|---|---|
| ARAB65/58 | 353.00 | 164.00 | 99.00 | 61.00 |
| ARAB65/60 | 374.00 | 164.00 | 99.00 | 63.00 |
| ARAB65/63 | 372.00 | 164.00 | 99.00 | 66.00 |
| ARAB65/67 | 374.00 | 164.00 | 99.00 | 70.00 |
| ARAB65/67R | 346.00 | 164.00 | 99.00 | 70.00 |
| ARAB65/70 | 376.00 | 164.00 | 99.00 | 73.00 |
| ARAB65/73 | 372.00 | 164.00 | 99.00 | 76.00 |
| ARAB65/73R | 347.00 | 164.00 | 99.00 | 76.00 |
| ARAB65/78 | 365.00 | 164.00 | 99.00 | 81.00 |
| ARAB65/84 | 367.00 | 164.00 | 99.00 | 87.00 |
