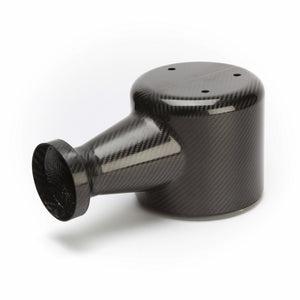

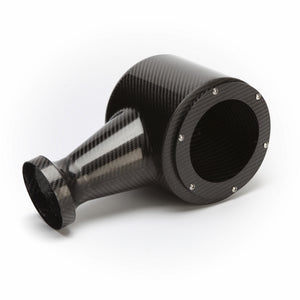

AB65H Carbon Airbox
Part Number: AB65H
The AB65H was originally developed for the Honda Civic Type R (EP3) Maxogen CAIS. Due to the compact design, it can be utilised where space is not at a premium - whilst retaining the ability to use any of our high flowing JC60FC Range.
Measurements
A - (Length) Measurement taken from airbox inlet (C), to filter spinning outlet (D). Rebated ARAB Spinning reduces length by approx. 20mm
B - (Width) Measurement taken at widest point of filter lid spinning.
Do not measure from screw to screw.
C - Inlet (Dirty air in) measurement taken as internal diameter.
See table for duct sizing guide.
D - Outlet (Clean air out) Compatable with JC60 Full Cone
All dimensions are in (mm)
| Part No. | A (Length) | B (Width) | C (Inlet) | D (Outlet ID / OD) | BHP | |
|---|---|---|---|---|---|---|
| AB65C w/ JC60/58FC | 330 | 192 | 99 | 58 / 61 | 200 | |
| AB65C w/ JC60/60FC | 330 | 211 | 99 | 60 / 63 | 220 | |
| AB65C w/ JC60/63FC | 330 | 211 | 99 | 63 / 66 | 240 | |
| AB65C w/ JC60/67FC | 330 | 213 | 99 | 67 / 70 | 270 | |
| AB65C w/ JC60/70FC | 330 | 213 | 99 | 70 / 73 | 290 | |
| AB65C w/ JC60/73FC | 330 | 209 | 99 | 73 / 76 | 300 | |
| AB65C w/ JC60/78FC | 330 | 203 | 99 | 78 / 81 | 310 | |
| AB65C w/ JC60/84FC | 330 | 205 | 99 | 84 / 87 | 330 |
